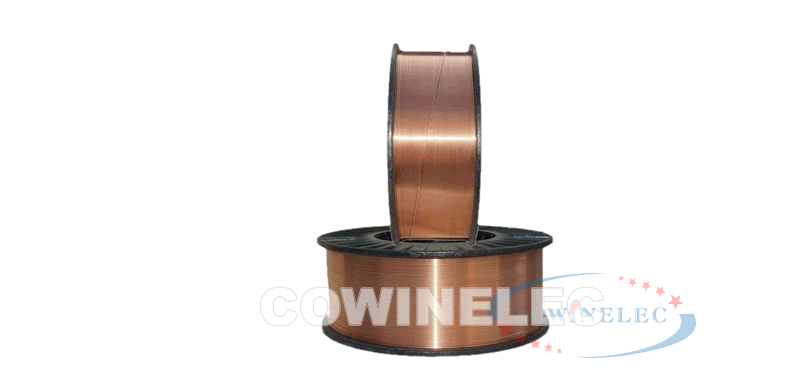

 welding wire >> GHS70- Browse: 1023



Standard:GB ER70-G
Characteristics:GHS70-is gas shielded welding wire of low alloy steel strengthened by Mn, Mo and micro-alloying, using Ar+20%CO2 welding, it has good weldability and good low temperature toughness.
Application:The welding of steel plate with 700MPa grade such as Q550.

Chemical composition(%)
C
Mn
Si
S
P
Cu
Cr
Ni
Mo
Ti
0.12
1.20-1.90
0.40-0.80
0.025
0.025
0.50
memoral
-
memoral
memoral

Typical mechanical properties of deposited metal:
Rm(MPa)

Rp0.2(MPa)
A(%)
Akv(-20)(J)
Shielded gas
745
660
22
124
Ar+20%CO2

Diameter and current: (DC)
Diameter(mm)
0.8
1.0
1.2
1.6
Current(A)
50-150
50-220
80-320
150-400
