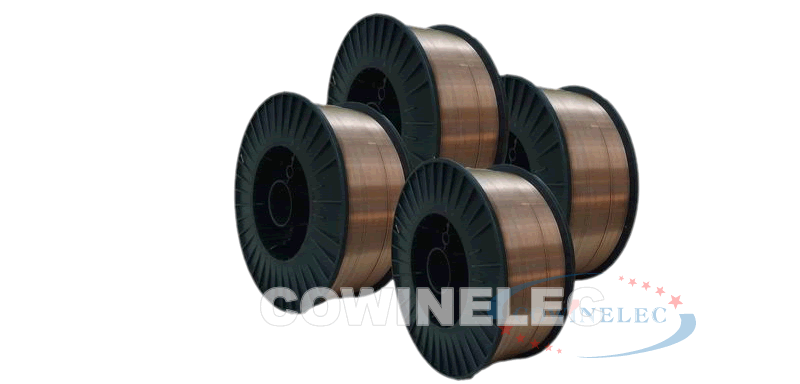

 welding wire >> GHS70 Browse: 1189



Standard:GB ER69-G  AWS ER100S-G
Characteristics:GHS70 is gas shielded welding wire of Mn-Mo-Ni low alloy steel, with the use of Ar+20%CO2 gas shielded, it has good weldability, higher melting deposited metal strength, and at same time it also has excellent low temperature toughness.
Application:The welding of steel plate with 700MPa grade, e.g. HG70Q550 etc.

Chemical composition(%)
C
Mn
Si
S
P
Cu
Cr
Ni
Mo
Ti
0.12
1.20-1.90
0.40-0.80
0.025
0.025
0.50
-
memoral
memoral
memoral

Typical mechanical properties of deposited metal:
Rm(MPa)
Rp0.2(MPa)
A(%)
Akv(-20)(J)
Shielded gas
745
635
24
120
Ar+20%CO2

Diameter and current: (DC)
Diameter(mm)
0.8
1.0
1.2
1.6
Current(A)
50-150
50-220
80-320
160-400
