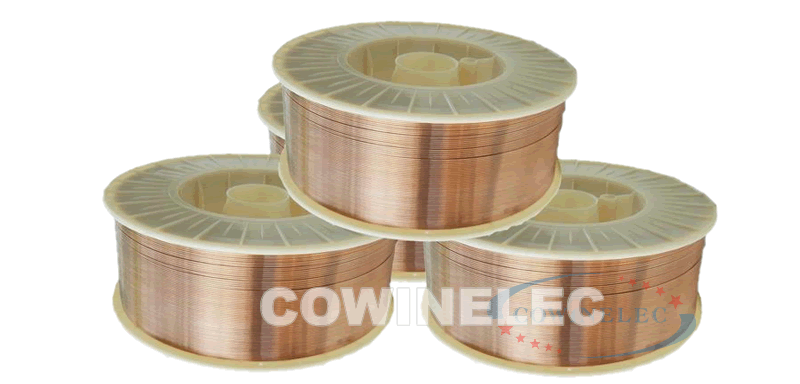

 welding wire >> G60 Browse: 583



Standard:GB ER55-D2-Ti   AWS ER80S-G   JIS YGW21
Characteristics: G60 is low alloy steel gas shielded welding wire, strengthened by MnMoTi, with the use of CO2 or the Ar+20%CO2 gas shielded, it has good weldability, higher melting deposited metal strength, and at same time it also has excellent low temperature toughness.
Application:The welding of structures of low carbon steel of 600-700MPa and low alloy medium -high strength steel, e.g. Q460, Q550 etc.

Chemical composition(%)

C
Mn
Si
S
P
Cu
Cr
Ni
Mo
Ti
0.12
1.20-1.90
0.40-0.80
0.025
0.025
0.50
-
-
0.20-0.50
memoral

Typical mechanical properties of deposited metal:
Rm(MPa)
Rp0.2(MPa)
A(%)
Akv(-30)(J)
Shielded gas
675
570
25
100
CO2

Diameter and current: (DC)
Diameter(mm)
0.8
1.0
1.2
1.6
Current(A)
50-150
50-200
80-350
120-450
