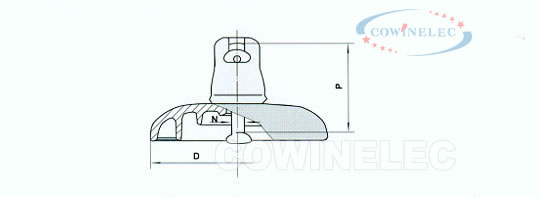

suspension profile

Minimum mechanical failing load             KN	160	160	160	210	240	300	400
1h electrical test load       KN	120	120	120	157.5	180	225	300
Diameter D                     mm	280	280	280	280	280	320	360
SpacingP                        m	146	155	170	170	170	195	205
Creepage distance           mm	400	400	400	400	400	485	550
IEC standard insulators	U16BS	U160B	U160BL	U210B		U300B	U400B
Dimcmsion metal fittings N	20	20	20	20	24	24	28
Catalog No.	FC160/146	FC160/155	FC160/170	FC210/170	FC240/170	FC300/195	FC400/205
Power frequency withstand voltage
-Dry one minute             KV	75	75	75	75	75	85	90
-Wet one minute            KV	45	45	45	45	45	50	55
Dry lightning impulse withstand voltage     KV	110	110	110	110	110	130	140
Puncture withstand voltage  KV	130	130	130	130	130	130	130
Approx net weight        kg	6	6.2	6.5	7.2	7.5	10.6	14
No of insulators percrate kg	5	5	5	5	5	4	3
Volume                                 m	0.069	0.069	0.069	0.074	0.074	0.078	0.11
Gross weight                    kg	33	33	34	37	38	43	52
