MAIN DIMENSIONS AND STANDARD PARTICULARS

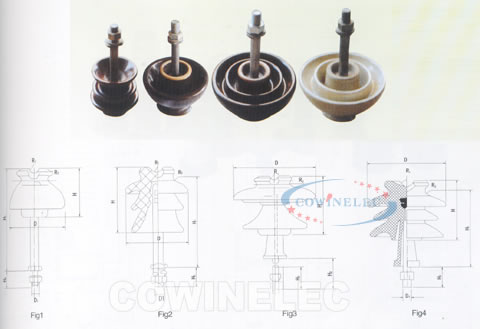

Fig No.		1	1	2	2	3	2	4
Type		P-10T/M	P-15T/M	PQ-10T/M	PQ-10T/M	P-20T/M	PQ-20T/M	PQ2-10T/M
Main Dimansions (mm)	H	105	120	133	137	165	188	165
	H1	176	180	183	185	235	235	209
	H2 T/M	35/140	40/140	40/140	40/140	40/140	40/140	40/140
	D	145	190	140	152	228	175	228
	D1	M16	M20	M20	M20	M20	M20	M20
	R1	11	13	13	13	14	14	19
	R2	9	11	9.5	12.5	13	13	14
Normal Voltage		10	15	10	15	20	20	22
Greepage Distance		185	280	255	295	370	370	450
Lighting Impiuse Withstand Voltage		75	90	90	110	132	132	132
Power Freguency	Wet Withstand	28	40	40	50	50	50	50
	Puncture	95	98	130	135	140	140	145
Cantilever Withstand Strength		1.4		2	2	2	2	2
Cantilever Failing load		11	11	11	11	13	13	13
Weight(kg)		2.1/2.3	3.4/3.7	2.35/2.7	3/3.3	6.2/6.6	6.2/6.7	6.2/7.1
The Old Models				1025T/M	P-15Y(T/M)		St-20Y/M	56-2T/M
Type		Common Type		Stand Pollution Type		Common Type		Stand Pollution Type
