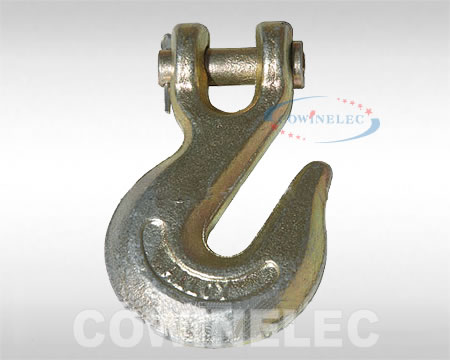

Hooks >> Us Type Clevis Grab Hook |
Browse: 924 |
Forged Steel Quenched and Tempered. Material: Carbon steel 1045# Finishing: Electronic Galv Features quick and easy assembly. Packing: In Gunny bags
|
ChainSize(in.) |
WorkingLoad Limit(lbs.)* |
WeightEach(lbs.) |
Dimensions (in.) |
Carbon |
A |
B |
C |
D |
E |
G |
H |
K |
L |
N |
P |
R |
|
1/4 |
2600 |
.36 |
1.00 |
.32 |
.31 |
1.81 |
.34 |
.88 |
.72 |
.47 |
3.05 |
1.75 |
.31 |
1.64 |
|
5/16 |
3900 |
.62 |
1.22 |
.43 |
.36 |
2.12 |
.44 |
.97 |
.91 |
.59 |
3.66 |
2.06 |
.38 |
2.02 |
|
3/8 |
5400 |
1.00 |
1.42 |
.48 |
.49 |
2.53 |
.50 |
1.17 |
1.00 |
.72 |
4.42 |
2.34 |
.44 |
2.41 |
|
7/16 |
7200 |
1.31 |
1.66 |
.66 |
.62 |
3.09 |
.56 |
1.31 |
1.13 |
.69 |
4.94 |
2.66 |
.56 |
2.75 |
|
1/2 |
9200 |
2.22 |
1.88 |
.57 |
.51 |
3.56 |
.66 |
1.53 |
1.25 |
.78 |
5.72 |
2.97 |
.63 |
3.19 |
|
5/8 |
13000 |
4.41 |
2.31 |
.71 |
.67 |
4.39 |
.78 |
1.78 |
1.56 |
1.09 |
6.83 |
4.31 |
.75 |
4.09 |
|
3/4 |
20200 |
6.50 |
2.62 |
.94 |
.94 |
5.22 |
.94 |
2.13 |
1.88 |
1.31 |
8.13 |
5.09 |
.88 |
4.63 |
|
| |
