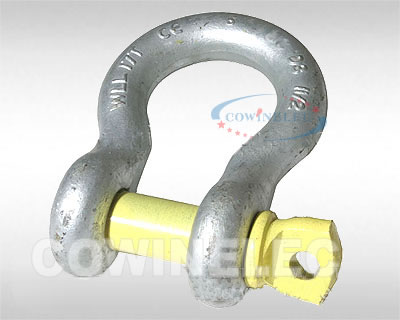

 Shackle >> Alloy Steel Screw Pin Browse: 826


editor/UploadFile/2011516201719935.jpgMaterial: Alloy Steel
editor/UploadFile/2011516201719935.jpgFinishing: Hot Dip Galvanized
editor/UploadFile/2011516201719935.jpgHeat treated: Tempered and Quenched
editor/UploadFile/2011516201719935.jpgMinimun Utimate Strength: 6 Times The Working Load Limit.
editor/UploadFile/2011516201719935.jpgPacking: Gunny Bag

NominalSize(in.)
WorkingLoadLimit(t)*
WeightEach(lbs.)

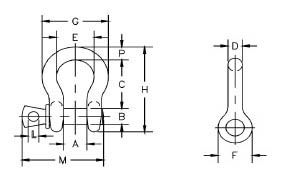

Dimensions (in.)
Tolerance+/-
A
B
C
D
E
F
G
H
L
M
P
C
A

3/16
1/3
.06
.38
.25
.88
.19
.60
.56
.98
1.47
.16
1.12
.19
.06
.06

1/4
1/2
.10
.47
.31
1.13
.25
.78
.61
1.28
1.84
.19
1.38
.25
.06
.06

5/16
3/4
.19
.53
.38
1.22
.31
.84
.75
1.47
2.09
.22
1.66
.31
.06
.06

3/8
1
.31
.66
.44
1.44
.38
1.03
.91
1.78
2.49
.25
2.03
.38
.13
.06

7/16
1-1/2
.38
.75
.50
1.69
.44
1.16
1.06
2.03
2.91
.31
2.38
.44
.13
.06

1/2
2
.72
.81
.63
1.88
.50
1.31
1.19
2.31
3.28
.38
2.69
.50
.13
.06

5/8
3-1/4
1.37
1.06
.75
2.38
.63
1.69
1.50
2.94
4.19
.44
3.34
.69
.13
.06

3/4
4-3/4
2.35
1.25
.88
2.81
.75
2.00
1.81
3.50
4.97
.50
3.97
.81
.25
.06

7/8
6-1/2
3.62
1.44
1.00
3.31
.88
2.28
2.09
4.03
5.83
.50
4.50
.97
.25
.06

1
8-1/2
5.03
1.69
1.13
3.75
1.00
2.69
2.38
4.69
6.56
.56
5.07
1.06
25
.06

1-1/8
9-1/2
7.41
1.81
1.25
4.25
1.16
2.91
2.69
5.16
7.47
.63
5.59
1.25
.25
.06

1-1/4
12
9.50
2.03
1.38
4.69
1.29
3.25
3.00
5.75
8.25
.69
6.16
1.38
.25
.06

1-3/8
13-1/2
13.53
2.25
1.50
5.25
1.42
3.63
3.31
6.38
9.16
.75
6.84
1.50
.25
.13

1-1/2
17
17.20
2.38
1.63
5.75
1.54
3.88
3.63
6.88
10.00
.81
7.35
1.62
.25
.13

1-3/4
25
27.78
2.88
2.00
7.00
1.84
5.00
4.19
8.86
12.34
1.00
9.08
2.25
.25
.13

2
35
45.00
3.25
2.25
7.75
2.08
5.75
4.81
9.97
13.68
1.22
10.34
2.40
.25
.13

2-1/2
55
85.75
4.13
2.75
10.50
2.71
7.25
5.69
12.87
17.84
1.38
13.00
3.13
.25
.25
