Material: Alloy Steel
Finishing: Hot Dip Galvanized
Heat treated: Tempered and Quenched
Minimun Utimate Strength: 6 Times The Working Load Limit.
Packing: Gunny Bag

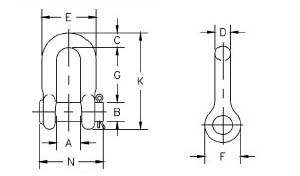

	NominalSize(in.)	WorkingLoadLimit(t)*	Stock No.	WeightEach(lbs.)	Dimensions (in.)									Tolerance+/-
			S-215		A	B	C	D	E	F	G	K	N	G	A
	1/4	1/2	1018829	.10	.47	.31	.25	.25	.97	.62	.91	1.59	1.34	.06	.06
	5/16	3/4	1018847	.18	.53	.38	.31	.31	1.15	.75	1.07	1.91	1.63	.06	.06
	3/8	1	1018865	.25	.66	.44	.38	.38	1.42	.92	1.28	2.31	1.86	.13	.06
	7/16	1-1/2	1018883	.40	.75	.50	.44	.44	1.63	1.06	1.44	2.67	2.13	.13	.06
	1/2	2	1018909	.50	.81	.63	.50	.50	1.81	1.18	1.66	3.03	2.38	.13	.06
	5/8	3-1/4	1018927	1.21	1.06	.75	.63	.63	2.32	1.50	2.04	3.76	2.91	.13	.06
	3/4	4-3/4	1018945	2.00	1.25	.88	.81	.75	2.75	1.81	2.40	4.53	3.44	.25	.06
	7/8	6-1/2	1018963	3.28	1.44	1.00	.97	.88	3.20	2.10	2.86	5.33	3.81	.25	.06
	1	8-1/2	1018981	4.75	1.69	1.13	1.00	1.00	3.69	2.38	3.24	5.94	4.53	.25	.06
	1-1/8	9-1/2	1019007	6.30	1.81	1.25	1.25	1.13	4.07	2.68	3.61	6.78	5.13	.25	.06
	1-1/4	12	1019025	9.00	2.03	1.38	1.38	1.25	4.53	3.00	3.97	7.50	5.50	.25	.13
	1-3/8	13-1/2	1019043	12.00	2.25	1.50	1.50	1.38	5.01	3.31	4.43	8.28	6.13	.25	.13
	1-1/2	17	1019061	16.15	2.38	1.63	1.62	1.50	5.38	3.62	4.87	9.05	6.50	.25	.13
	1-3/4	25	1019089	29.96	2.88	2.00	2.12	1.75	6.38	4.19	5.82	10.97	7.75	.25	.13
	2	35	1019105	43.25	3.25	2.25	2.36	2.10	7.25	5.00	6.82	12.74	8.75	.25	.13
