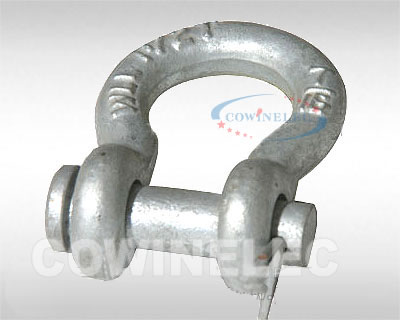

 Shackle >> Alloy Steel Bolt Type Browse: 766


Material: Alloy Steel
editor/UploadFile/2011516201010221.jpgFinishing: Hot Dip Galvanized
editor/UploadFile/2011516201010221.jpgHeat treated: Tempered and Quenched
editor/UploadFile/2011516201010221.jpgMinimun Utimate Strength: 6 Times The Working Load Limit.
editor/UploadFile/2011516201010221.jpgPacking: Gunny Bag


Nominal
Size
(in.)
Working
Load
Limit
(t)*
Weight
Each
(lbs.)

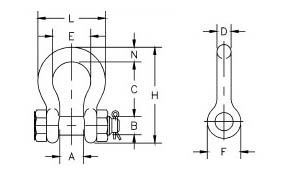

Dimensions (in.)
Tolerance
+/-
A
B
C
D
E
F
H
L
N
C
A

3/16
1/3
.06
.38
.25
.88
.19
.60
.56
1.47
.98
.19
.06
.06

1/4
1/2
.11
.47
.31
1.13
.25
.78
.61
1.84
1.28
.25
.06
.06

5/16
3/4
.22
.53
.38
1.22
.31
.84
.75
2.09
1.47
.31
.06
.06

3/8
1
.33
.66
.44
1.44
.38
1.03
.91
2.49
1.78
.38
.13
.06

7/16
1-1/2
.49
.75
.50
1.69
.44
1.16
1.06
2.91
2.03
.44
.13
.06

1/2
2
.79
.81
.64
1.88
.50
1.31
1.19
3.28
2.31
.50
.13
.06

5/8
3-1/4
1.68
1.06
.77
2.38
.63
1.69
1.50
4.19
2.94
.69
.13
.06

3/4
4-3/4
2.72
1.25
.89
2.81
.75
2.00
1.81
4.97
3.50
.81
.25
.06

7/8
6-1/2
3.95
1.44
1.02
3.31
.88
2.28
2.09
5.83
4.03
.97
.25
.06

1
8-1/2
5.66
1.69
1.15
3.75
1.00
2.69
2.38
6.56
4.69
1.06
.25
.06

1-1/8
9-1/2
8.27
1.81
1.25
4.25
1.13
2.91
2.69
7.47
5.16
1.25
.25
.06

1-1/4
12
11.71
2.03
1.40
4.69
1.29
3.25
3.00
8.25
5.75
1.38
.25
.06

1-3/8
13-1/2
15.83
2.25
1.53
5.25
1.42
3.63
3.31
9.16
6.38
1.50
.25
.13

1-1/2
17
20.80
2.38
1.66
5.75
1.53
3.88
3.63
10.00
6.88
1.62
.25
.13

1-3/4
25
33.91
2.88
2.04
7.00
1.84
5.00
4.19
12.34
8.80
2.25
.25
.13

2
35
52.25
3.25
2.30
7.75
2.08
5.75
4.81
13.68
10.15
2.40
.25
.13

2-1/2
55
98.25
4.13
2.80
10.50
2.71
7.25
5.69
17.90
12.75
3.13
.25
.25

3
85
154.00
5.00
3.30
13.00
3.12
7.88
6.50
21.50
14.62
3.62
.25
.25

3-1/2
120
265.00
5.25
3.76
14.63
3.62
9.00
8.00
24.88
17.02
4.38
.25
.25

4
150
338.00
5.50
4.26
14.50
4.00
10.00
9.00
25.68
18.00
4.56
.25
.25
