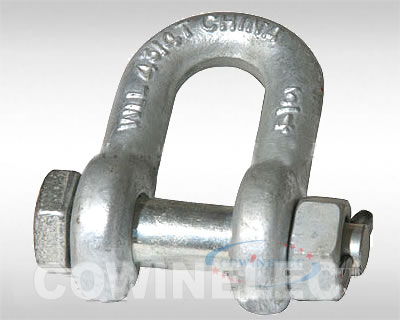

Shackle >> Alloy Steel Safety Pin Chain

Browse: 840

Material: Alloy Steel
Finishing: Hot Dip Galvanized
Heat treated: Tempered and Quenched
Minimun Utimate Strength: 6 Times The Working Load Limit.
Packing: Gunny Bag

NominalSize(in.)

WorkingLoadLimit(t)*

WeightEach(lbs.)

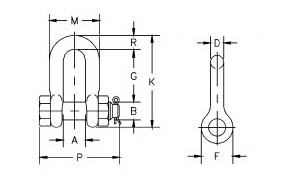

Dimensions (in.)

Tolerance+/-

A

B

D

F

G

K

M

P

R

G

A

1/4

1/2

.13

.47

.31

.25

.62

.91

1.59

.97

1.56

.25

.06

.06

5/16

3/4

.23

.53

.38

.31

.75

1.07

1.91

1.15

1.82

.31

.06

.06

3/8

1

.33

.66

.44

.38

.92

1.28

2.31

1.42

2.17

.38

.13

.06

7/16

1-1/2

.49

.75

.50

.44

1.06

1.48

2.67

1.63

2.51

.44

.13

.06

1/2

2

.75

.81

.64

.50

1.18

1.66

3.03

1.81

2.80

.50

.13

.06

5/8

3-1/4

1.47

1.06

.77

.63

1.50

2.04

3.76

2.32

3.56

.63

.13

.06

3/4

4-3/4

2.52

1.25

.89

.75

1.81

2.40

4.53

2.75

4.15

.81

.25

.06

7/8

6-1/2

3.85

1.44

1.02

.88

2.10

2.86

5.33

3.20

4.82

.97

.25

.06

1

8-1/2

5.55

1.69

1.15

1.00

2.38

3.24

5.94

3.69

5.39

1.00

.25

.06

1-1/8

9-1/2

7.60

1.81

1.25

1.13

2.68

3.61

6.78

4.07

5.90

1.25

.25

.06

1-1/4

12

10.81

2.03

1.40

1.25

3.00

3.97

7.50

4.53

6.69

1.38

.25

.06

1-3/8

13-1/2

13.75

2.25

1.53

1.38

3.31

4.43

8.28

5.01

7.21

1.50

.25

.13

1-1/2

17

18.50

2.38

1.66

1.50

3.62

4.87

9.05

5.38

7.73

1.62

.25

.13

1-3/4

25

31.40

2.88

2.04

1.75

4.19

5.82

10.97

6.38

9.33

2.12

.25

.13

2

35

46.75

3.25

2.30

2.10

5.00

6.82

12.74

7.25

10.41

2.36

.25

.13

2-1/2

55

85.00

4.12

2.80

2.63

5.68

8.07

14.85

9.38

13.58

2.63

.25

.25

3

85

124.25

5.00

3.25

3.00

6.50

8.56

16.87

11.00

15.13

3.50

.25

.25
