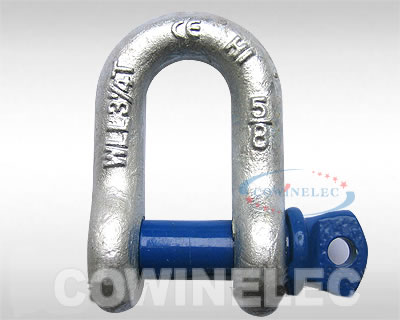

 Shackle >> Screw Pin Chain Shackle G210 Browse: 1974




editor/UploadFile/2011516195635414.jpgMaterial: Body: Carbon Steel , Pin: Alloy Steel
editor/UploadFile/2011516195635414.jpgFinishing: Hot Dip Galvanized
editor/UploadFile/2011516195635414.jpgHeat treated: Tempered and Quenched
editor/UploadFile/2011516195635414.jpgMinimun Utimate Strength: 6 Times The Working Load Limit.
editor/UploadFile/2011516195635414.jpgPacking: Gunny Bag
 ITEM
NO.
Nominal
Size(in.)
Workin
Load
Limit
(t)*
Weight
Each(lbs.)

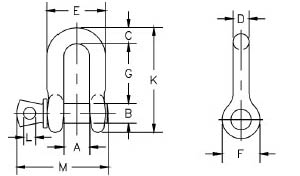

Dimensions (in.)
Tolerance+/-
A
B
C
D
E
F
G
K
L
M
G
A
 100031
1/4
1/2
.11
.47
.31
.25
.25
.97
.62
.97
1.59
.19
1.43
.06
.06
 100032
5/16
3/4
.17
.53
.38
.31
.31
1.15
.75
1.07
1.91
.22
1.71
.06
.06
 100033
3/8
1
.28
.66
.44
.38
.38
1.42
.92
1.28
2.31
.25
2.02
.13
.06
 100034
7/16
1-1/2
.43
.75
.50
.44
.44
1.63
1.06
1.48
2.67
.31
2.37
.13
.06
 100035
1/2
2
.59
.81
.63
.50
.50
1.81
1.18
1.66
3.03
.38
2.69
.13
.06
 100036
5/8
3-1/4
1.25
1.06
.75
.63
.63
2.32
1.50
2.04
3.76
.44
3.34
.13
.06
 100037
3/4
4-3/4
2.63
1.25
.88
.81
.75
2.75
1.81
2.40
4.53
.50
3.97
.25
.06
 100038
7/8
6-1/2
3.16
1.44
1.00
.97
.88
3.20
2.10
2.86
5.33
.50
4.50
.25
.06
 100039
1
8-1/2
4.75
1.69
1.13
1.00
1.00
3.69
2.38
3.24
5.94
.56
5.13
.25
.06
 100040
1-1/8
9-1/2
6.75
1.81
1.25
1.25
1.13
4.07
2.69
3.61
6.78
.63
5.71
.25
.06
 100041
1-1/4
12
9.06
2.03
1.38
1.38
1.25
4.53
3.00
3.97
7.50
.69
6.25
.25
.13
 100042
1-3/8
13-1/2
11.63
2.25
1.50
1.50
1.38
5.01
3.31
4.43
8.28
.75
6.83
.25
.13
 100043
1-1/2
17
15.95
2.38
1.63
1.62
1.50
5.38
3.62
4.84
9.05
.81
7.33
.25
.13
 100044
1-3/4
25
26.75
2.88
2.00
2.12
1.75
6.38
4.19
5.78
10.97
1.00
9.06
.25
.13
 100045
2
35
42.31
3.25
2.25
2.36
2.10
7.25
5.00
6.77
12.74
1.13
10.35
.25
.13
 100046
2-1/2
55
71.75
4.12
2.75
2.63
2.63
9.38
5.68
8.07
14.85
1.38
13.00
.25
.25
