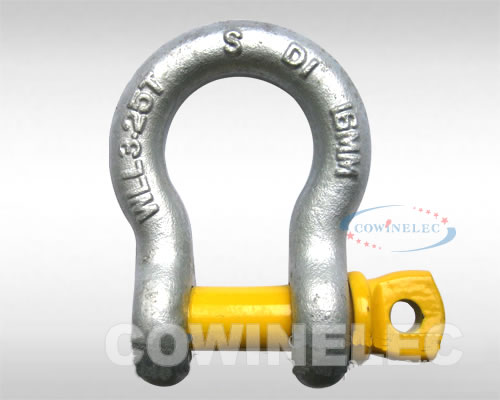

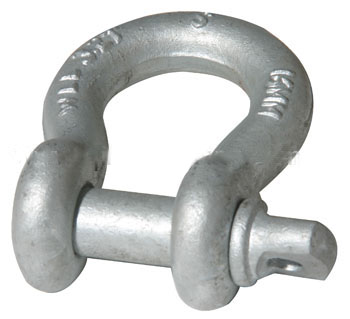

Shackle >> Grade S Bow Shackle

Browse: 942

Material: Body: Carbon Steel , Pin: Alloy Steel
Finishing: Hot Dip Galvanized
Heat treated: Tempered and Quenched
Minimun Utimate Strength: 6 Times The Working Load Limit.
Packing: Gunny Bag

ITEM

NO.

Nominal

Size(in.)

Working

LoadLimit(t)*

Weight

Each(lbs.)

Dimensions (in.)

Tolerance+/-

A

B

C

D

E

F

G

H

L

M

P

C

A

100501

3/16

1/3

.06

.38

.25

.88

.19

.60

.56

.98

1.47

.16

1.12

.19

.06

.06

100502

1/4

1/2

.10

.47

.31

1.13

.25

.78

.61

1.28

1.84

.19

1.38

.25

.06

.06

100503

5/16

3/4

.19

.53

.38

1.22

.31

.84

.75

1.47

2.09

.22

1.66

.31

.06

.06

100504

3/8

1

.31

.66

.44

1.44

.38

1.03

.91

1.78

2.49

.25

2.03

.38

.13

.06

100505

7/16

1-1/2

.38

.75

.50

1.69

.44

1.16

1.06

2.03

2.91

.31

2.38

.44

.13

.06

100506

1/2

2

.72

.81

.63

1.88

.50

1.31

1.19

2.31

3.28

.38

2.69

.50

.13

.06

100507

5/8

3-1/4

1.37

1.06

.75

2.38

.63

1.69

1.50

2.94

4.19

.44

3.34

.69

.13

.06

100508

3/4

4-3/4

2.35

1.25

.88

2.81

.75

2.00

1.81

3.50

4.97

.50

3.97

.81

.25

.06

100509

7/8

6-1/2

3.62

1.44

1.00

3.31

.88

2.28

2.09

4.03

5.83

.50

4.50

.97

.25

.06

100510

1

8-1/2

5.03

1.69

1.13

3.75

1.00

2.69

2.38

4.69

6.56

.56

5.07

1.06

25

.06

100511

1-1/8

9-1/2

7.41

1.81

1.25

4.25

1.16

2.91

2.69

5.16

7.47

.63

5.59

1.25

.25

.06

100512

1-1/4

12

9.50

2.03

1.38

4.69

1.29

3.25

3.00

5.75

8.25

.69

6.16

1.38

.25

.06

100513

1-3/8

13-1/2

13.53

2.25

1.50

5.25

1.42

3.63

3.31

6.38

9.16

.75

6.84

1.50

.25

.13

100514

1-1/2

17

17.20

2.38

1.63

5.75

1.54

3.88

3.63

6.88

10.00

.81

7.35

1.62

.25

.13

100515

1-3/4

25

27.78

2.88

2.00

7.00

1.84

5.00

4.19

8.86

12.34

1.00

9.08

2.25

.25

.13

100516

2

35

45.00

3.25

2.25

7.75

2.08

5.75

4.81

9.97

13.68

1.22

10.34

2.40

.25

.13

100517

2-1/2

55

85.75

4.13

2.75

10.50

2.71

7.25

5.69

12.87

17.84

1.38

13.00

3.13

.25

.25
