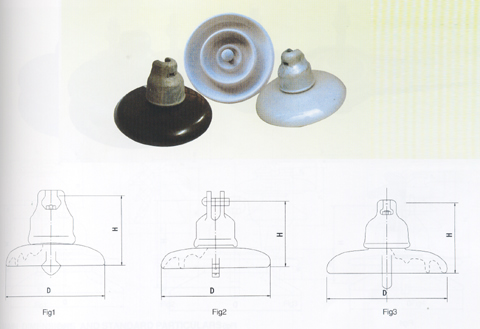

GB PORCELAIN DISC SUSPENSION INSULATORS Type X-30/c XP-60/c XP-70/c XP-70/T XP-100 XP-100 Fig 1/2 1/2 1/2 3 1 1 Main Dimansions (mm) Heigh Strutre Declarate 140 146 146 146 146 155 Distance Declarative Ceramic 200 255 255 255 255 255 Coupling To Type 16/16c 16/16c 16/16c 16 16 20 Minimum Creepage Distance 200 280 295 295 295 305 Electromechanical Failing Load(KV) 40 60 70 70 100 160 Impact Strength(N.M) - - 565 565 678 1017 Lighting Full Wave Impulse Withstand Voltage(r.m.s )minimum(KV) 90 100 100 100 100 100 One munute wet Power-Freguency Withstand Voltage(r.m.s)minimun(KV) 30 35 40 40 40 40 Power Freguency Puncture Voltage(KV) 90 110 110 110 110 110 Weight(kg) 3.5 5.5 5.3 5.4 5.6 6.8 The Old Models x-3/c x-4.5/c XP-7/c XP-7T XP-10 XP-16
