Type

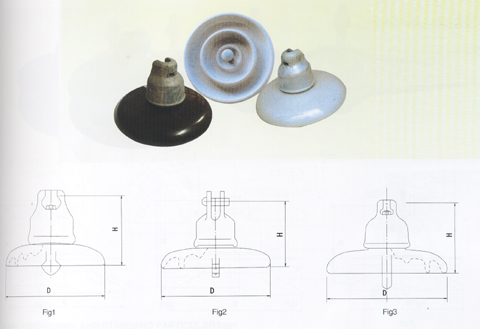

Fig

Main Dimension in (mm)

Creepage Distance

Lighting Impuse Withstand Voltage KV

Wet Power Freguancy Withstand Voltage KV

Minimun Bending Failing Load KN

Recom Mended Pin Type

Designation

H

D

SLP/11/180

1

110

150

180

105

30

7

A/130/7

180S7

ALP/11/275

2

160

150

275

105

30

7

C/150/7

275A7

ALP/22/450

3

200

160

450

150

50

11

C/200/11

450A11

ALP/22/490

3

250

165

490

160

50

11

C/200/11

490A11

FLP/22/480

4

200

250

480

150

50

11

C/150/11

480F11

ALP/22/520

3

210

200

520

150

50

11

C/200/11

520F11

ALP/33/710

3

265

220

710

220

90

11

C/300/7

710A11

ALP/33/920

3

320

240

920

220

90

11

C/300/7

920A11
